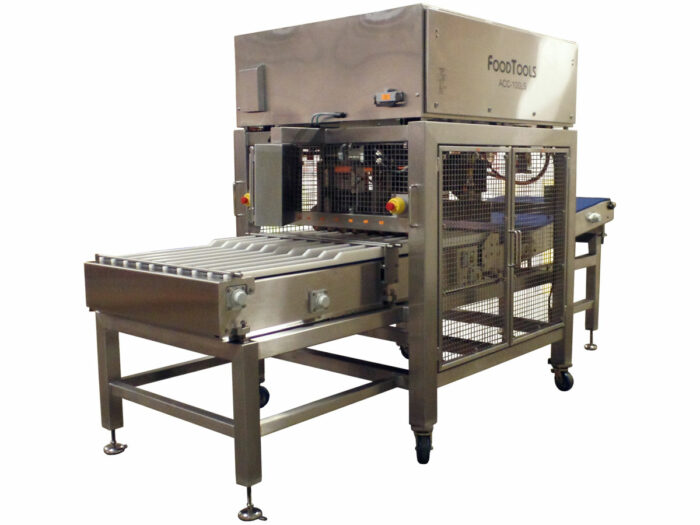

INLINE ULTRASONIC LOAF CUTTING
This is a custom machine designed for continuous supplied product to cut loaf products into slices. The machine can be configured to cut from 1-10 loaves side by side automatically depending on width of product. The machine is designed to employ a servo driven conveyor belt through put type system, servo blade actuator, ultrasonic cutting systems, interlocked safety guards, automatic product off load, and is “wash down” for ease of cleaning and sanitation. Onload and offload can be automated with an auto load conveyor and automated exit conveyor.
| SPEED | Up To 1,200 Products Per Hour |
|---|---|
| PRODUCT TYPE | Loaf Products |
| PRODUCT TEMPERATURE | Fresh, Ambient, Sticky |
| END USER | Large Commercial Bakeries |
| PORTIONING TECHNOLOGY | Ultrasonic Blades |
| DIVIDER INSERTS | n/a |
| PRODUCT SIZE | Up To 12” Wide, 18” Long, Up To 5.5” Tall |
| PORTION SIZE | 0.375” Thick And Larger |
| POWER | Compressed Air 3-5 CFM @ 90 PSI |
| MACHINE DIMENSIONS | 144.6” Long, 54” Wide, 82” Tall, Approx. 2,500 Lbs |
COMPARE MACHINES
REQUEST A QUOTE
COMPARE MACHINES
FoodTools machines are engineered, manufactured, and assembled in the United States of America and are installed in food production facilities around the world.
